Label Printer Configuration with Zebra ZT510 Example

The Zebra ZT510 printer offers a wide range of settings that allow you to tailor its operation to specific needs. Below are the basic functions and parameters that affect the device's performance.

Konfiguracja serwera wydruku i edycja szablonów wydruków można sprawdzić tutaj > Wydruki

Basic Settings​

In the Printing Preferences menu, go to the Options tab, where you can specify the width and height of the label according to the selected paper size.

Printing Preferences - Options Tab

Printing Preferences > Options Tab

Example setting: Label 50×25

  • In case of faint printing, increase the darkness level.
  • A blurry print may indicate too high print speed – it is recommended to reduce it.

Adjusting Print Position on the Label​

To adjust the print position on the label, use the options in the Advanced Printer Settings tab.

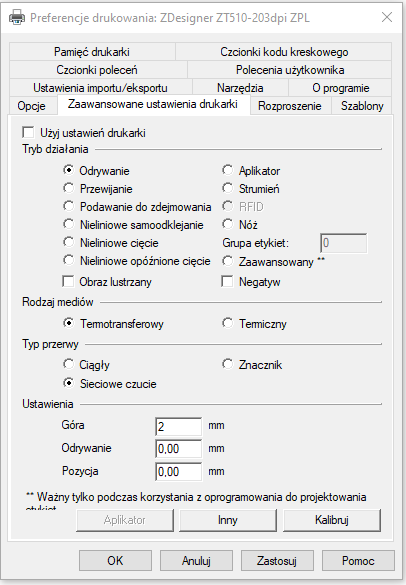

Advanced Printer Settings Tab

Printing Preferences > Advanced Printer Settings Tab

Example setting: Label 50×25

  • For vertical print offset, change the value in the Top field. The distance is measured from the top edge of the label.
  • For horizontal print offset, enter the value in the Position field. The distance is measured from the left edge of the label.

The values can be both positive and negative, depending on the required adjustments.

Post-Print Modes​

The printer offers several post-printing modes. The most commonly used include:

  • Tear Off – The label stops at the edge, making it easier to peel off.
  • Feed to Remove – Printing of subsequent labels is paused until the current label is removed.
  • Cutter – The printed label is cut from the roll (only available with printers that have a cutting module).

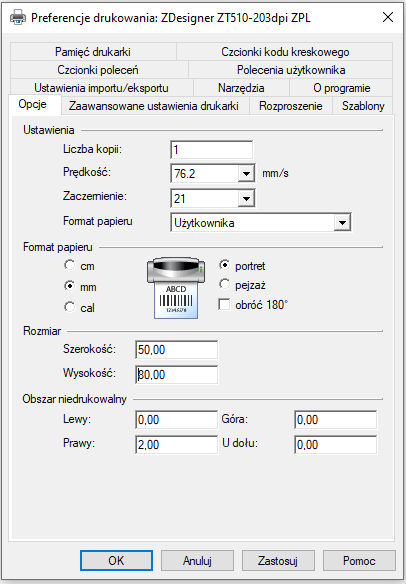

Label Cutting Mode

Example setting: Label 50×80

Label Settings Example 50×80

Example setting: Label 50×80
